Manometer/Differential pressure meters

Many techniques have been developed for the measurement of pressure and vacuum. Instruments used to measure pressure are called pressure gaugesor vacuum gauges.

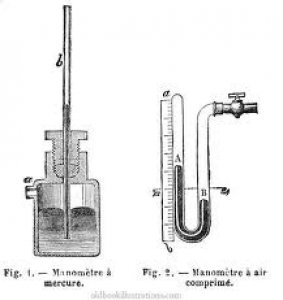

  1. manometer could also refer to a pressure measuring instrument, usually limited to measuring pressures near to atmospheric. The term manometer is often used to refer specifically to liquid column hydrostatic instruments.
  2. vacuum gauge is used to measure the pressure in a vacuum—which is further divided into two subcategories, high and low vacuum (and sometimesultra-high vacuum). The applicable pressure range of many of the techniques used to measure vacuums have an overlap. Hence, by combining several different types of gauge, it is possible to measure system pressure continuously from 10 mbar down to 10−11 mbar.
  • Filter
  • Search
  Name Description Category
Screenshot_166
LUT0068B PORTABLE DIGITAL DIFFERENTIAL PRESSURE/ MANOMETER 7000 MBAR/HPA-9107 Dual & differential input, 7000 mbar ( 7 bar ) maximum range. * Application : Industrial, laboratory, heating, ventilation, medical hospital,used for air or not corrosive and notionized gas & liquid. * Sensor is built inside the housing. * Single lugs for pipe connection. Pressure Instruments
Screenshot_167
LUT0375-4GB 7000MBAR PRESSURE MANOMETER WITH SD CARD RECORDER-9117 Dual & differential input, 7000 mbar ( 7 bar ) maximum range. * Application : Industrial, laboratory, heating, ventilation, medical hospital,used for air or not corrosive and notionized gas & liquid. * Sensor is built inside the housing. * Single lugs for pipe connection. Pressure Instruments
Screenshot_167
LUT0374 -4GB 200MBAR PRESSURE MANOMETER WITH SD CARD RECORDER * Dual & differential input, 200 mbar x 0.1 mbar.* Unit : mbar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H2O, meter/H2O, Atmosphere.* Data hold, Memory (Max., Min.).* RS232/USB computer interface.* Application : Industrial, laboratory, schools, heating, ventilation, hospital, medical...* Size : 180 x 72 x 32 mm. Pressure Instruments
Screenshot_167
LUT0373-4GB 2000MBAR PRESSURE MANOMETER WITH SD CARD RECORDER-9110 * Dual & differential input, 2000 mbar x 1 mbar.* mbar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H20, meter/H2O, Atmosphere.* Data hold, Memory(Max.,Min.), RS232.* Application : Industrial, laboratory, schools,heating, ventilation, hospital, medical...* Size : 180 x 72 x 32 mm. Pressure Instruments
Screenshot_171
LUT0235 DIGITAL PRECISION MANOMETER, 200 MBAR-9102 * Dual & differential input, 200 mbar x 0.1 mbar.* Unit : mbar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H2O, meter/H2O, Atmosphere.* Data hold, Memory (Max., Min.).* RS232/USB computer interface.* Application : Industrial, laboratory, schools, heating, ventilation, hospital, medical...* Size : 180 x 72 x 32 mm. Manometer/Differential pressure meters
tst0080-81-0-100-mbar-manometer-germany
TST0080/81 0-100 mbar manometer - Germany Features: Measuring range: 0 to 100 mbar Resolution: 0.01 mbar Selectable units:  differential manometer measures differential pressure in the range from 0 to 100 mbar. The pressure measurement is temperature compensated to obtain accurate measurement values. The measurement values can be displayed inPascal over the entire measurement range. Magnets at the rear of the instrument permit hand free operation. The backlit display allows the measurement values to be easily read, even in unfavourable light conditions. The Testo 510 differential manometer, in combination with a Pitot tube, measures air flow velocity and for accurate measurement values, the air density can be compensated.   Features: Measuring range: 0 to 100 mbar Resolution: 0.01 mbar Selectable units: hPa mbar Pa mmH2O mmHg inH2O inHg psi m/s (with optional Pitot tube accessory) fpm (with optional Pitot tube accessory) Temperature and air density compensation Flow velocity measurement with Pitot tube (Pitot tube not included) Display illumination Protective cap for safe storage Dimensions (incl. protective cap): 119mm x 46mm x... Manometer/Differential pressure meters
Screenshot_171
LUT0068 DIGITAL MANOMETER 2000 MBAR/HPA - 9100 Description： MANOMETER, 2000 mbar, differential input Model :  LUT0068  PM-9100 * Dual & differential input, 2000 mbar x 1 mbar. * mbar, PSI, Kg/cm2, inch/Hg, mm/Hg, inch/H20, meter/H2O, Atmosphere. * Data hold, Memory(Max.,Min.), RS232. * Application : Industrial, laboratory, schools,heating, ventilation, hospital, medical... * Size : 180 x 72 x 32 mm. Manometer/Differential pressure meters
tst0087-512-9-0-2000hpa-manometer-germany
TST0087-512-9 0-2000hpa manometer - Germany differential pressure meter, 0 to 2000 hPa, incl. battery and calibration protocol 8 switchable units of pressure: kPa, hPa, Pa, mm H2O, mmHg, psi, inch H2O, inch Hg Integrated density compensation Display illumination Hold-/max-/min function Printout of measurement values incl. date/time and min/max values Storage temperature -10 to +70 °C Operating temperature 0 to +60 °C Battery type 9V block battery, 6F22 Battery life 120 h Weight 300 g Dimensions 202 x 57 x 42 mm Material/Housing ABS Probe type Pressure sensor integrated Meas. Range 0 to +2000 hPa Accuracy 0.5% of fsv Resolution 1 hPa Manometer/Differential pressure meters
