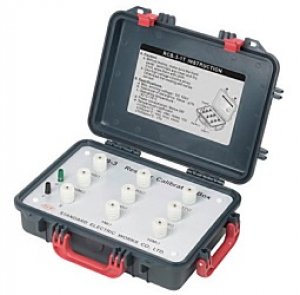

RESISTOR CALIBRATION BOXES(Decade Boxes)
| Name | Description | Category | ||
|---|---|---|---|---|
|
SEW0011 -RCB-3-1T HV Resistor Calibration Boxes | ● The RCB-3-1T is used to verify and proof any High Voltage Insulation Testers. It can be utilized to calibrate all High Voltage Insulation Testers very accurately Analogs or Digitals. ● Some institutions and large industries requested their own calibrator too, therefore, SEW started manufacturing the RCB for special customers. | Insulation (Resistance) testers |
|
|
SEW0012 ITC8 Resistor Calibration Box | ● The RCB-3-1T is used to verify and proof any High Voltage Insulation Testers. It can be utilized to calibrate all High Voltage Insulation Testers very accurately Analogs or Digitals. ● Some institutions and large industries requested their own calibrator too, therefore, SEW started manufacturing the RCB for special customers. | Insulation (Resistance) testers |
|
|
SEW0011B-RCB-1 INSULATION TEST DECADE RESISTANCE BOX-TEST UP TO 500GOHM | FEATURES ● The RCB-1 is used to verify and proof any High Voltage Insulation Testers. It can be utilized to calibrate all High Voltage Insulation Testers very accurately Analogs or Digitals.● Some institutions and large industries requested their own calibrator too, therefore, SEW started manufacturing the RCB for special customers. SPECIFICATIONS Resistance ranges (Ω) 1M. 2M. 7M. 10M. 20M. 30M. 50M. 100M. 200M. 500M. 1G. 2G. 5G. 10G. 20G. 50G. 100G. 200G. 500G Resistance tolerances ±1%(F) Tolerance ± 25ppm/°C : 1MΩ. 2MΩ. 7MΩ. 10MΩ. 20MΩ. 30MΩ. 50MΩ. 100MΩ. 200MΩ. 500MΩ ± 100ppm/°C : 1GΩ. 2GΩ. ± 200ppm/°C : 5GΩ. 10GΩ. 20GΩ. 50GΩ. 100GΩ. ± 400ppm/°C : 200GΩ. 500GΩ ± 1000ppm/°C : 1TΩ Max. working voltage DC 10kV Operating temperature -30°C~75°C Power coefficient Below 3W Connecting terminals Binding Post : Resistance... | Insulation (Resistance) testers |
|
